EYE+ XTD Controller

Dimensions

The EYE+ XTD Controller can be fixed using the two brackets. All the dimensions required to mount the EYE+ XTD Controller in your electrical cabinet are presented in Fig. 20.

../../_images/EYEplus_controller_dimensions.png

Fig. 20 Dimensions of EYE+ XTD Controller and mounting brackets

../../_images/power_cable_connector.png

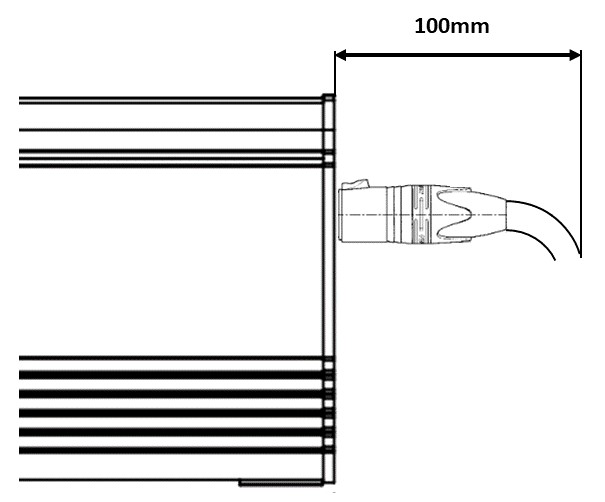

Fig. 21 Dimensions of EYE+ XTD Controller power connector + cable folding (CC)

Table 5 EYE+ XTD Controller mechanical properties

Characteristic

Value

Weight

1.26kg

Dimensions

187 x 141 x 71 mm

Storage Temperature

+5°C to 40°C

Operating Temperature

+5°C to 40°C

Humidity

Operating: 30% to 85%

Ingress Protection

IP30

Mounting the EYE+ XTD Controller

  • Unpack the EYE+ XTD Controller.

  • Fix the EYE+ XTD Controller inside your electrical cabinet using four M4 screws. We advice you to fix the EYE+ XTD Controller vertically and to ventilate the cabinet. Refer to EYE+ XTD Controller standard specifications section for more details.

../../_images/controller_mounting1.png

Fig. 22 EYE+ XTD Controller mounting step 1 and 2

../../_images/controller_mounting2.png

Fig. 23 EYE+ XTD Controller mounting step 3 and 4
