GPIO
An optional GPIO connector is available for purchase if your application requires connecting an external light beyond what the frontlight kit provides. When attaching the GPIO connector, ensure that both side locks are fully and securely engaged.

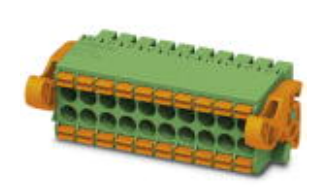

Fig. 30 GPIO connector for connecting an external light
Note
For detailed instructions on how to electrically connect your external light to the GPIO connector, please refer to GPIO.
Dimensions

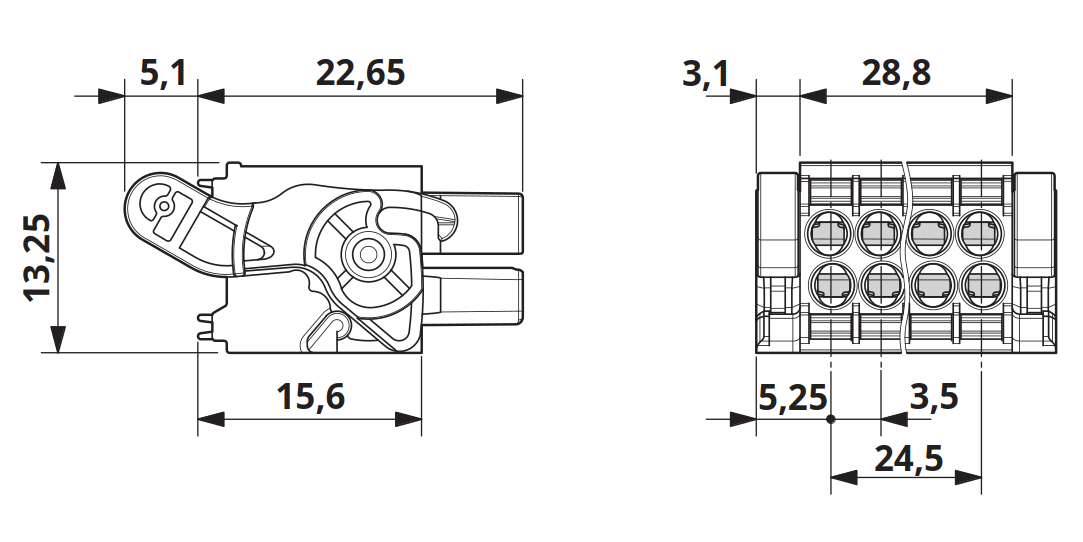

Fig. 31 Mechanical drawing of the GPIO Connector in [mm]
Characteristic |
Value |
|---|---|
Length [mm] |
27.75 |
Height [mm] |
13.25 |
Width [mm] |
35 |
Conductor cross section min. [mm²] |
0.2 |
Conductor cross section max. [mm²] |
1.5 |
Conductor cross section AWG min. |
24 |
Conductor cross section AWG max. |
16 |
