Frontlight

An optional frontlight kit is available to purchase separately. The kit comes in two variants: a short version (235 mm bar length) and a long version (435 mm bar length). Choose the appropriate version based on your picking area size. The lighting should cover the entire picking area to ensure optimal performance.

Each kit includes:

• Two light bars of the specified length

• A T-junction M12 connector to link both bars

• Two or four articulated mounting brackets, depending on bar length

• Screws and nuts for mounting

Note

Before choosing your lighting kit, make sure to check the information available in Effect of each type of lighting.

Bars Lighting - 235 mm

Dimensions

Table 8 235 mm Light Bar Specifications

Characteristic	Value
A [mm]	Application dependent
B [°]	-90 to +90
C [mm]	48-99 (depends on B)
D [mm]	71.5
Emitting angle [°]	45
VDC [V]	24
Current [mA]	3200
Color options	Red, Green, Blue, White, Infrared
Weight [kg]	4.2

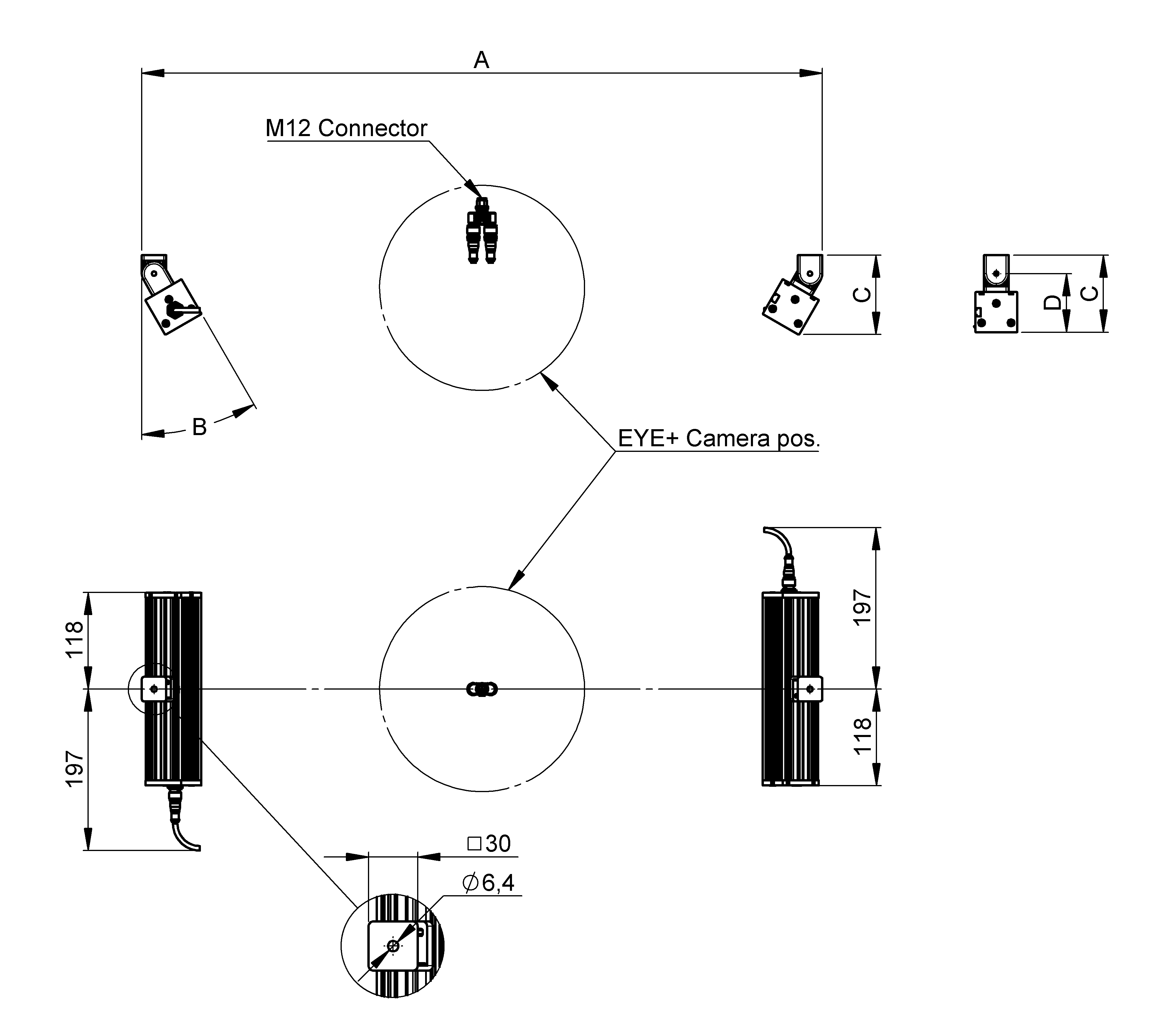

Fig. 27 Dimensions of the 235 mm light bar

Bars Lighting - 435 mm

Dimensions

Table 9 435 mm Light Bar Specifications

Characteristic	Value
A [mm]	Application dependent
B [°]	-90 to +90
C [mm]	48-99 (depends on B)
D [mm]	71.5
Emitting angle [°]	45
VDC [V]	24
Current [mA]	3200
Color options	Red, Green, Blue, White, Infrared
Weight [kg]	5.2

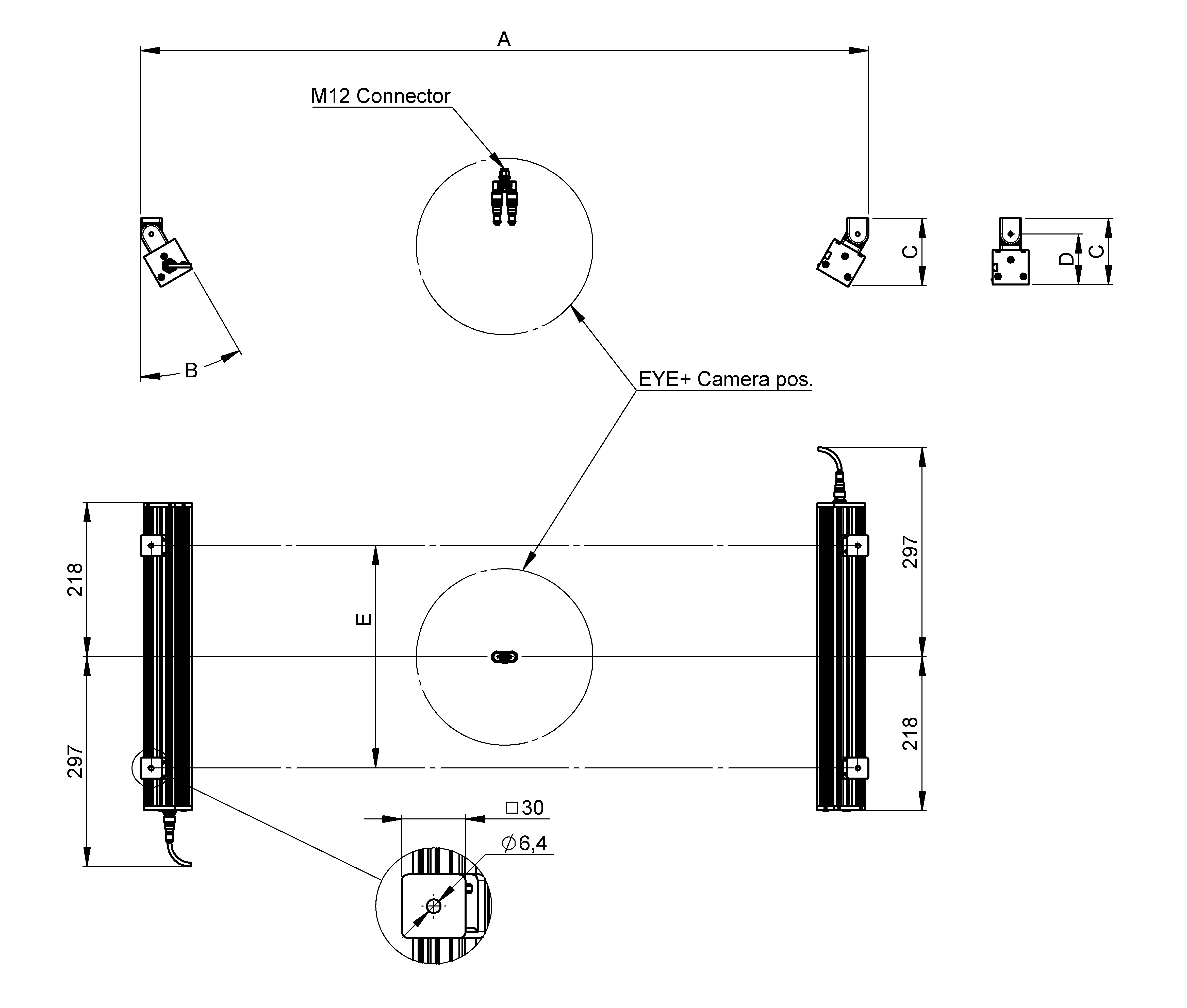

Fig. 28 Dimensions of the 435 mm light bar

Mounting the Frontlight

Best practices for mounting the frontlights:

• Adjust length A from Dimensions of the 235 mm light bar or Dimensions of the 435 mm light bar based on your specific application.

• The B angle can be tuned to optimize illumination on the picking area.

• Ensure the light bars are mounted outside the camera’s field of view.

• Maintain equal distance between the camera and each light bar.

Note

If needed, the plastic guide on the articulated mounting bracket can be removed using a screwdriver, as shown below:

Fig. 29 Removing the plastic guide on the mounting bracket
