Electrical interfaces

The EYE+ XTD Controller must be connected to :

  • Power supply

  • Camera

Furthermore, several other interfaces are available to connect:

  • Robot or PLC for production

  • Computer or company network for configuration

  • Frontlight

../_images/global_connection.png

Fig. 37 EYE+ XTD overall wiring diagram

Note

Communication cables can be ordered in different lengths depending on your needs.

Connector Overview

The EYE+ XTD Controller has connectors on both sides to connect the devices mentioned above.

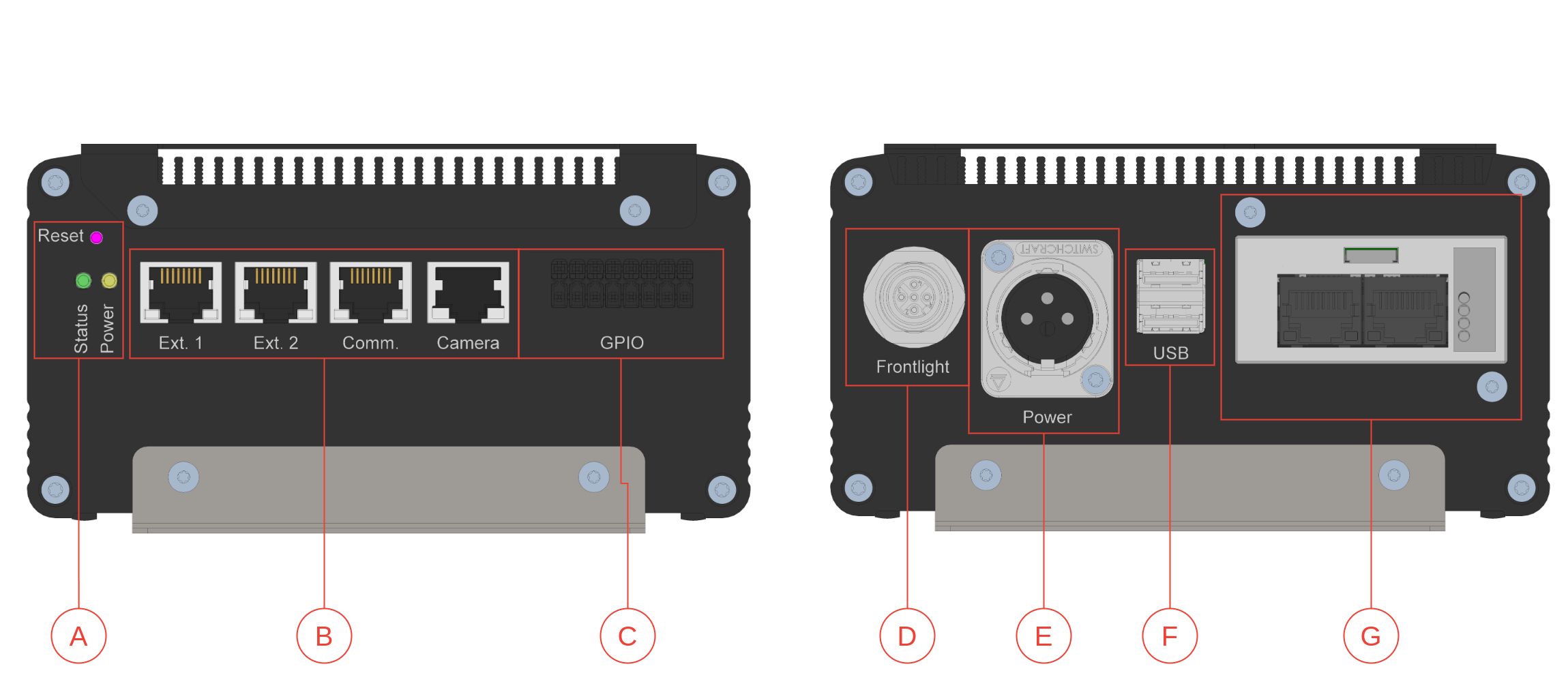

../_images/front_bottom_connections.png

Fig. 38 EYE+ XTD Controller connections

(A) Visual Signals and Reset button

(B) Ethernet Connections RJ45 Ethernet ports

(C) GPIO connector

(D) Frontlight connector

(E) Power supply connector

(F) USB connectors, used for Create a Backup and Restore a backup

(G) Optional Fieldbus Module

Important

The USB connectors (F) are intended for backup and restore purpose only. Do not use these ports to power any external devices (e.g. tablet, PC, etc). Failure to comply with this instruction may result in permanent damage to the EYE+ XTD Controller.
