Robot

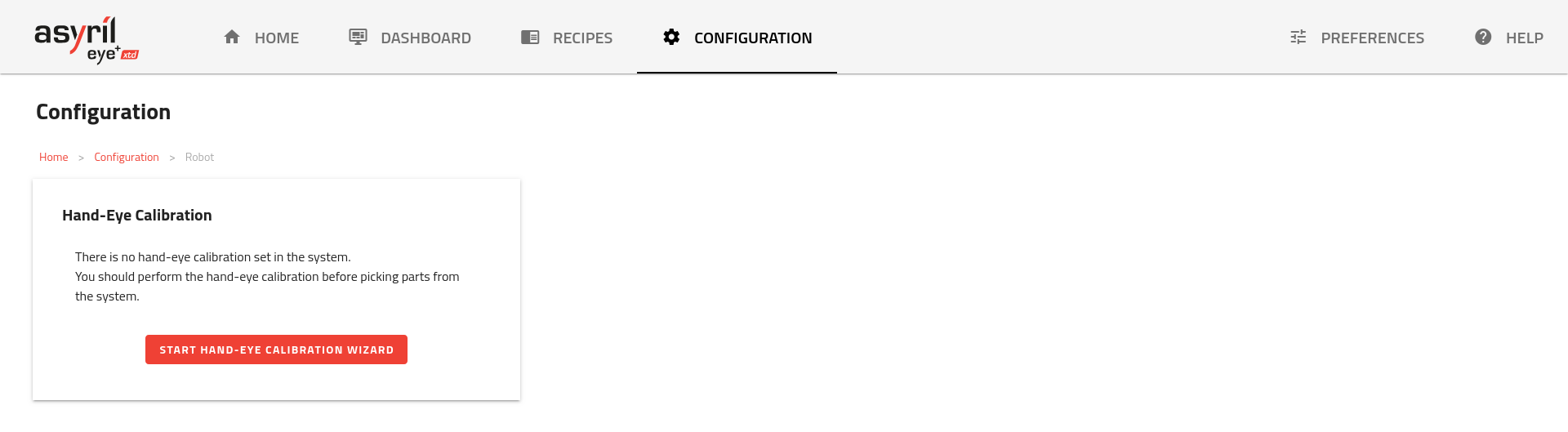

Access the robot configuration through CONFIGURATION and Robot.

../../_images/robot_robot_configuration.png

Fig. 154 Robot configuration interface

Hand-eye calibration

The hand-eye calibration card informs you about the current state of the Hand-eye calibration wizard and allows you to open it.

Three variants of the interface are possible:

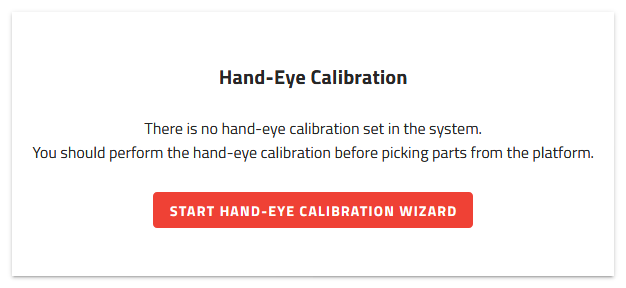

  • No hand-eye calibration performed (Fig. 155)

../../_images/no_handeye_calibration.png

Fig. 155 No hand-eye calibration performed

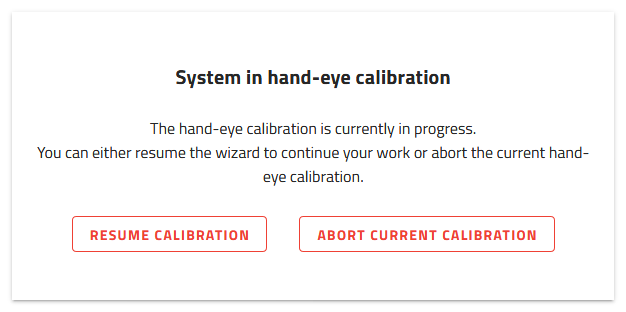

  • Hand-eye calibration in progress (Fig. 156)

../../_images/handeye_calibration_in_progress.png

Fig. 156 Hand-eye calibration in progress

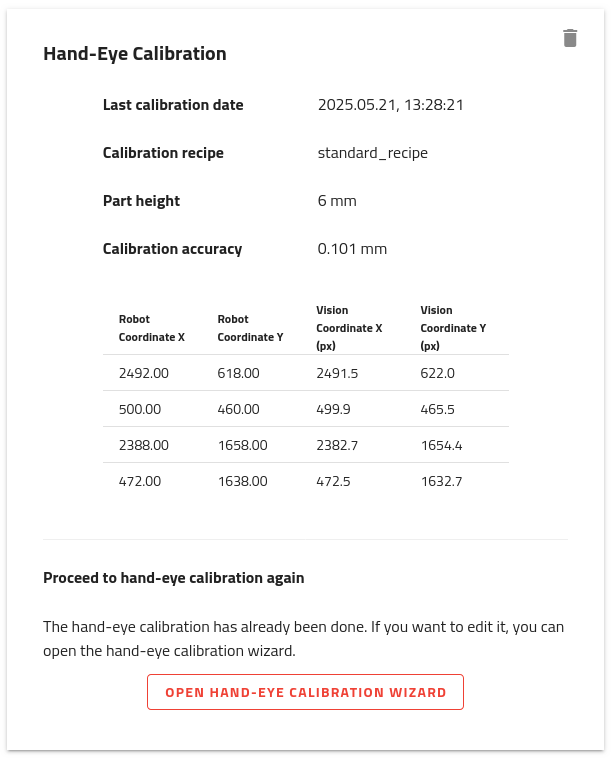

  • Hand-eye calibration already performed (Fig. 157)

../../_images/handeye_calibration_already_performed.png

Fig. 157 Hand-eye calibration already performed

If the hand-eye calibration was already performed, some information regarding last hand-eye calibration is available:

  • Last calibration date

  • Calibration recipe

  • Part height

  • Calibration accuracy

Access hand-eye calibration wizard

Click on START HAND-EYE CALIBRATION WIZARD or OPEN HAND-EYE CALIBRATION WIZARD to access the Hand-eye calibration wizard.
