Measure recipe performance

The qualification wizard is at your disposal to evaluate the performance you can expect from your recipe.

The recipe qualification wizard is designed to test your recipe over several runs and presents you the results so you can easily see how you can tweak it to improve performance.

The system will simulate a simple production scenario (get_part), so you won’t need to send commands manually. However, you must manually move the parts or replace them with another batch to simulate a production run.

Note

During this phase, the system doesn’t return any coordinates, making it impossible to use a robot to remove the good parts.

To access it, create and finish a recipe and then click on qualify.

../../_images/timeline.png

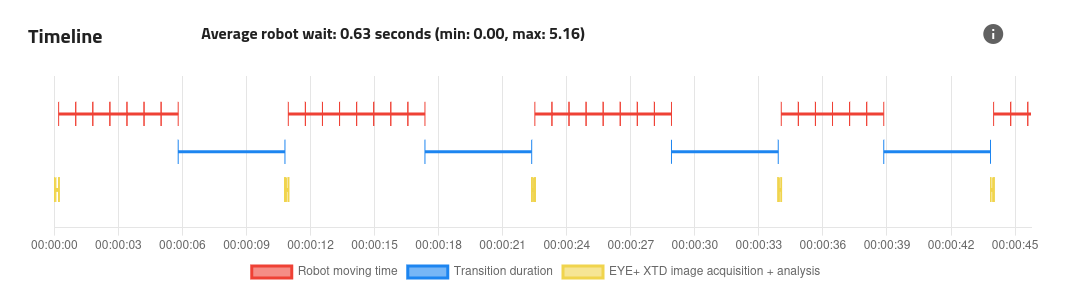

Fig. 115 Final timeline

  • 1. Part Preparation: Getting the system ready to start qualification runs.

  • 2. Runs: A run consists of an image being captured and analyzed according to your recipe settings.

  • 3. Results: Format and present the results of the runs as a timeline.

Important

This functionality is not available for multi-model recipes.
